Diesel Steamer

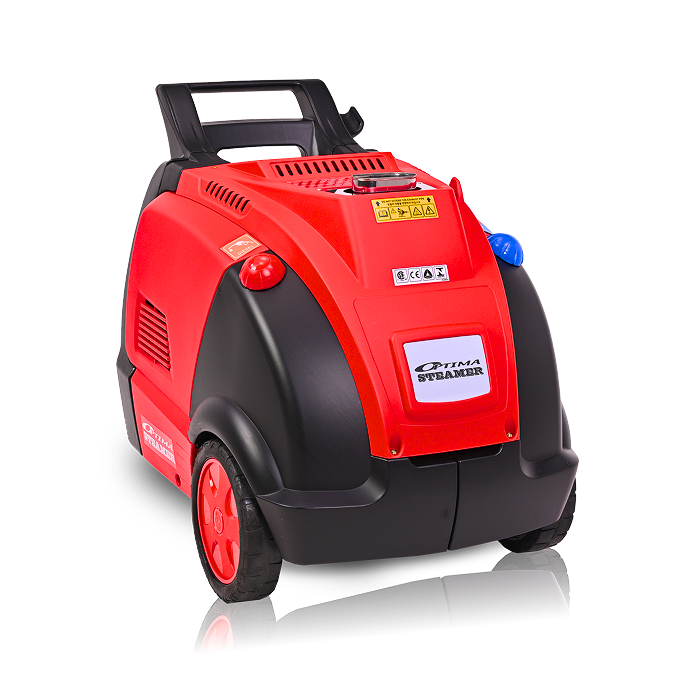

OPTIMA DMF

OPTIMA DMF is a powerful and reliable steam generator used in many areas such as car washes, industry and public spaces, for cleaning, disinfection and as a source of process steam.

Voltage

1-Phase 100V ~ 240V
Max Pressure

9.5 bar
Steam Flow Rate

300 ~ 1,800 cc/min
Power Consumption

0.3 kW
Dimensions(Weight)

1,090*700*900mm(83kg)
Certifications

CE, c-CSA-us, SASO

Overview

1st Generation Diesel Steamer

OPTIMA DMF is not only a professional external steam car wash machine but also an excellent steam car interior cleaner.
Superior Advantages

With a portable generator, OPTIMA DMF becomes a portable steam cleaner to clean even in outside with durable design.
Recommended Applications

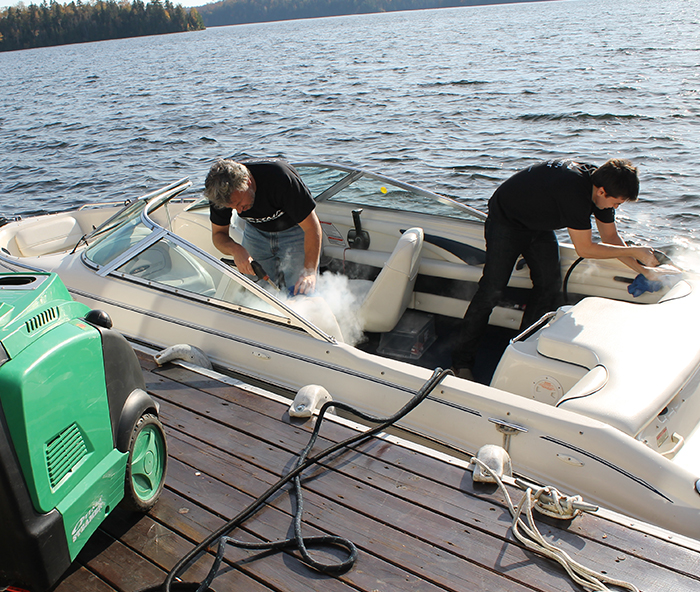

OPTIMA DMF is powered by diesel fuel and it is ideal for mobile cleaning and sanitizing applications such as mobile car wash, detailing cars & other vehicles, etc.

OPTIMA DMF The World Leader in Industrial Steam Cleaning

Now Experience OPTIMA DMF’s Unrivaled Technology & Steam Power

Features

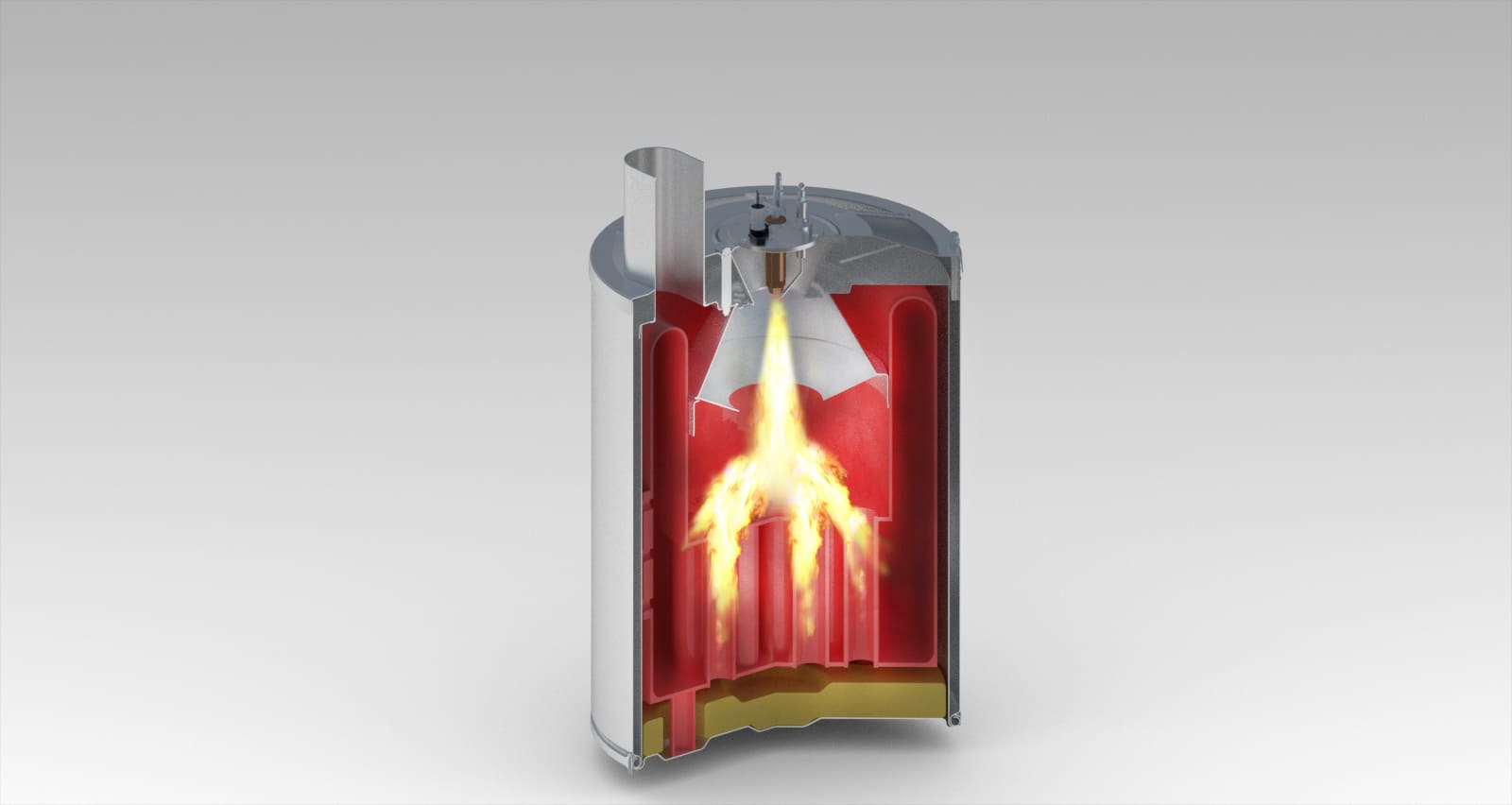

POWERFUL HEATING EFFICIENT DESIGN

The DMF’s patented boiler system fuels its unrivaled power, quickly delivering more dry steam, continuously. You will see and feel the difference.
DRY & WET STEAM

Increase the moisture output of the steam spray for tougher jobs. Hot water is delivered from the boiler to make quick work of heavier oils and caked on dirt.

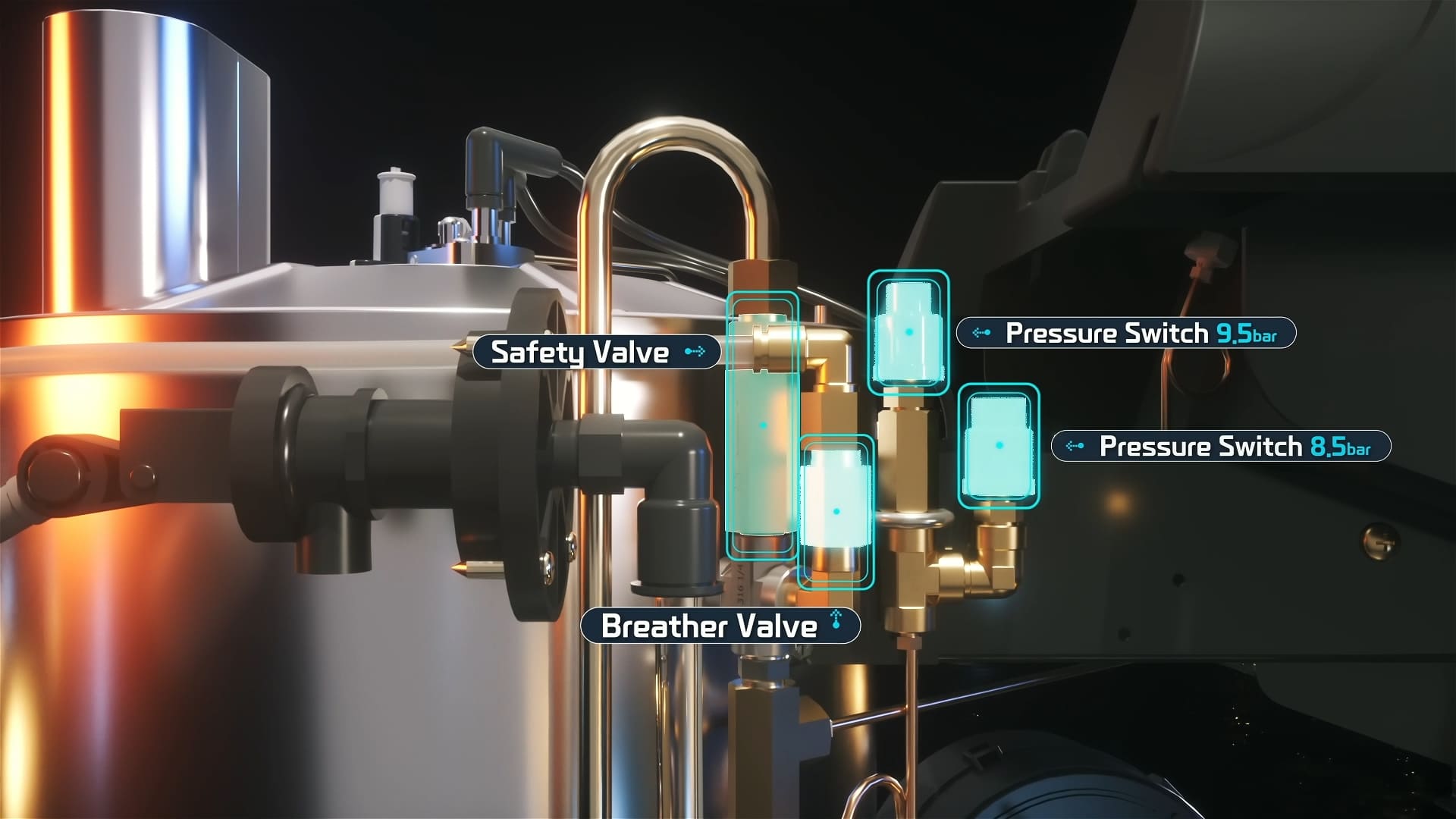

SIMPLIFIED OPERATION RELENTLESS SAFETY

The DMF has been intelligently designed so it can be operated by almost anyone. With over 20 safety features, it takes the worry out of operation.

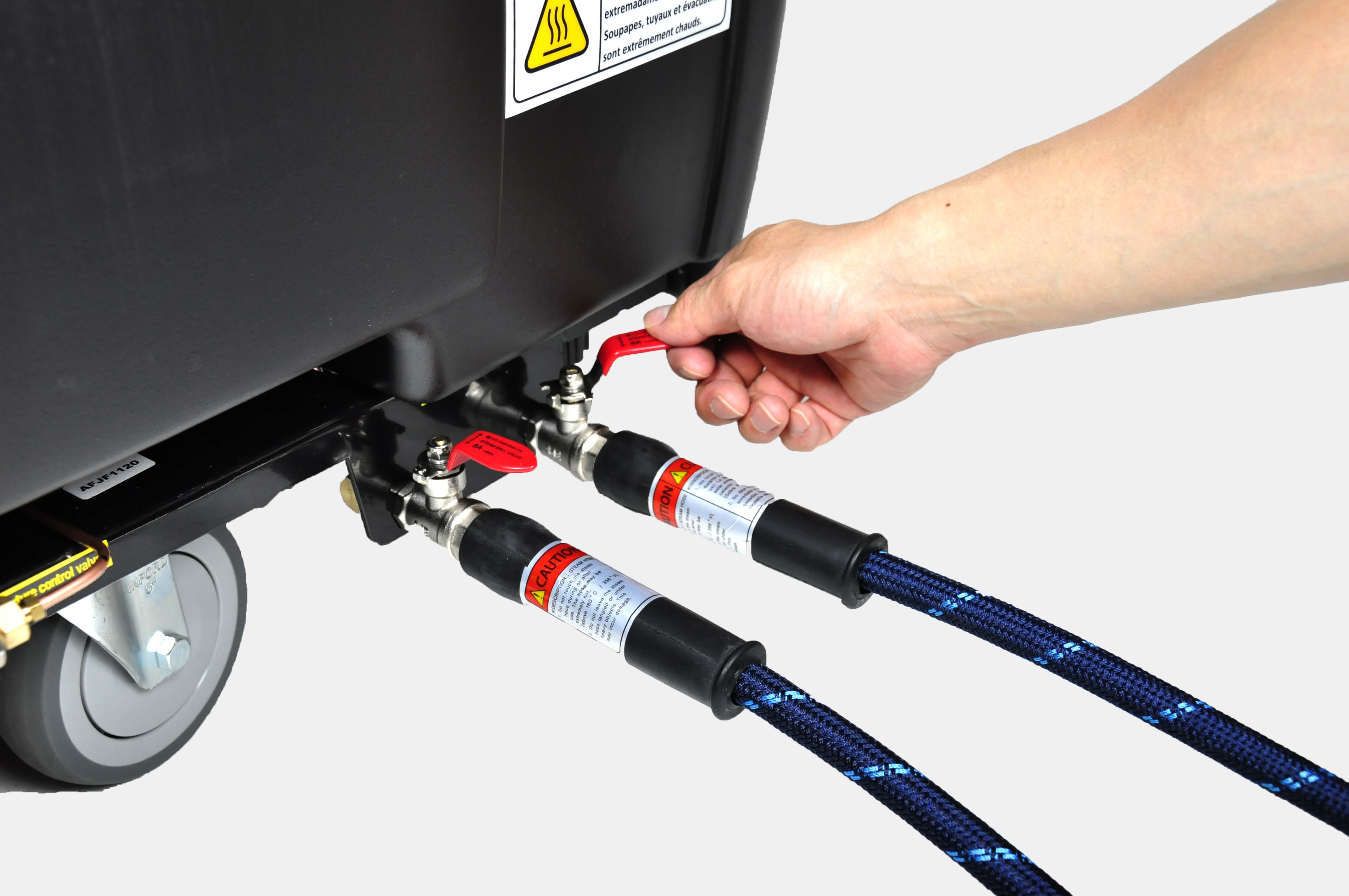

CONVENIENT CONNECTIONS

The DMF has 2 steam output connections standard. Connect a water hose for an unlimited supply of water.
SANITIZE AND DEODORIZE WITH NO CHEMICALS

The OPTIMA’s superheated steam is lab tested to kill mold, bacteria and viruses using only water. Sanitize while you clean and stop odors where they start.
REDUCE YOUR COSTS, SAVE THE ENVIRONMENT

Get rid of harmful chemicals, reduce water consumption and cut wastewater with the OPTIMA and save money while you’re saving the earth.

OPTIMA DMF Detail View

DMF

Water Tank

Water Tank

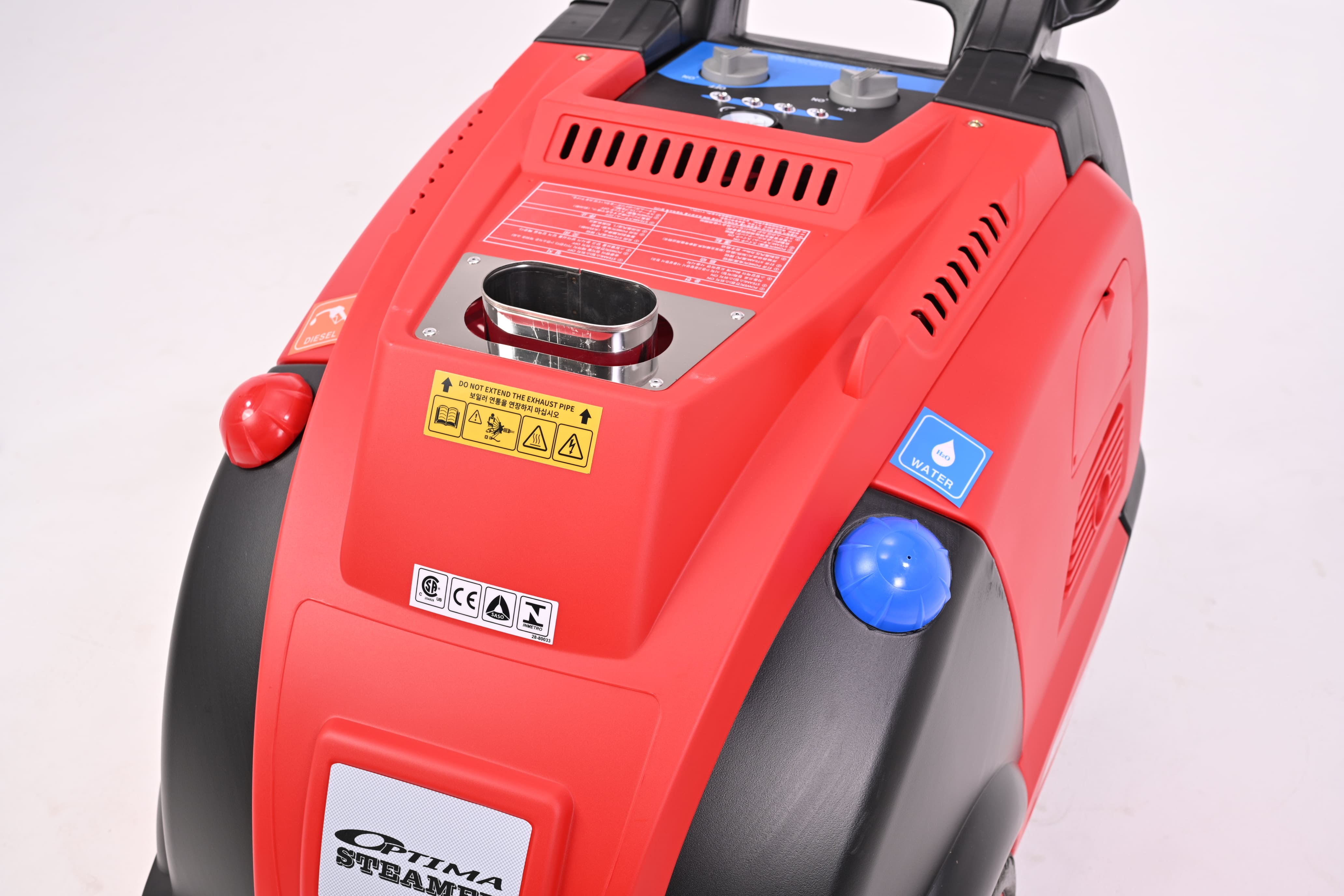

Exhaust Flue

Exhaust Flue

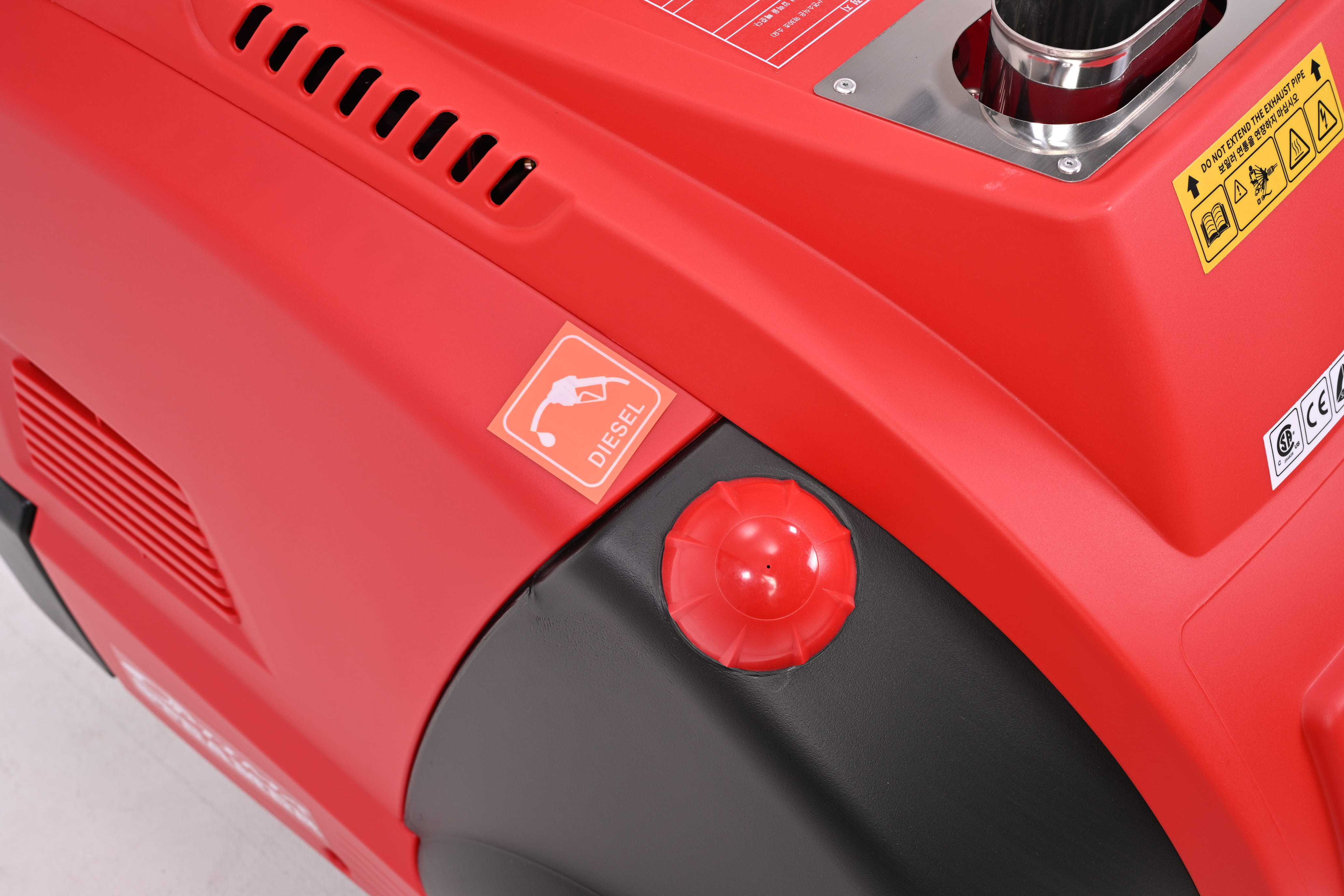

Fuel Tank

Fuel Tank

DMF

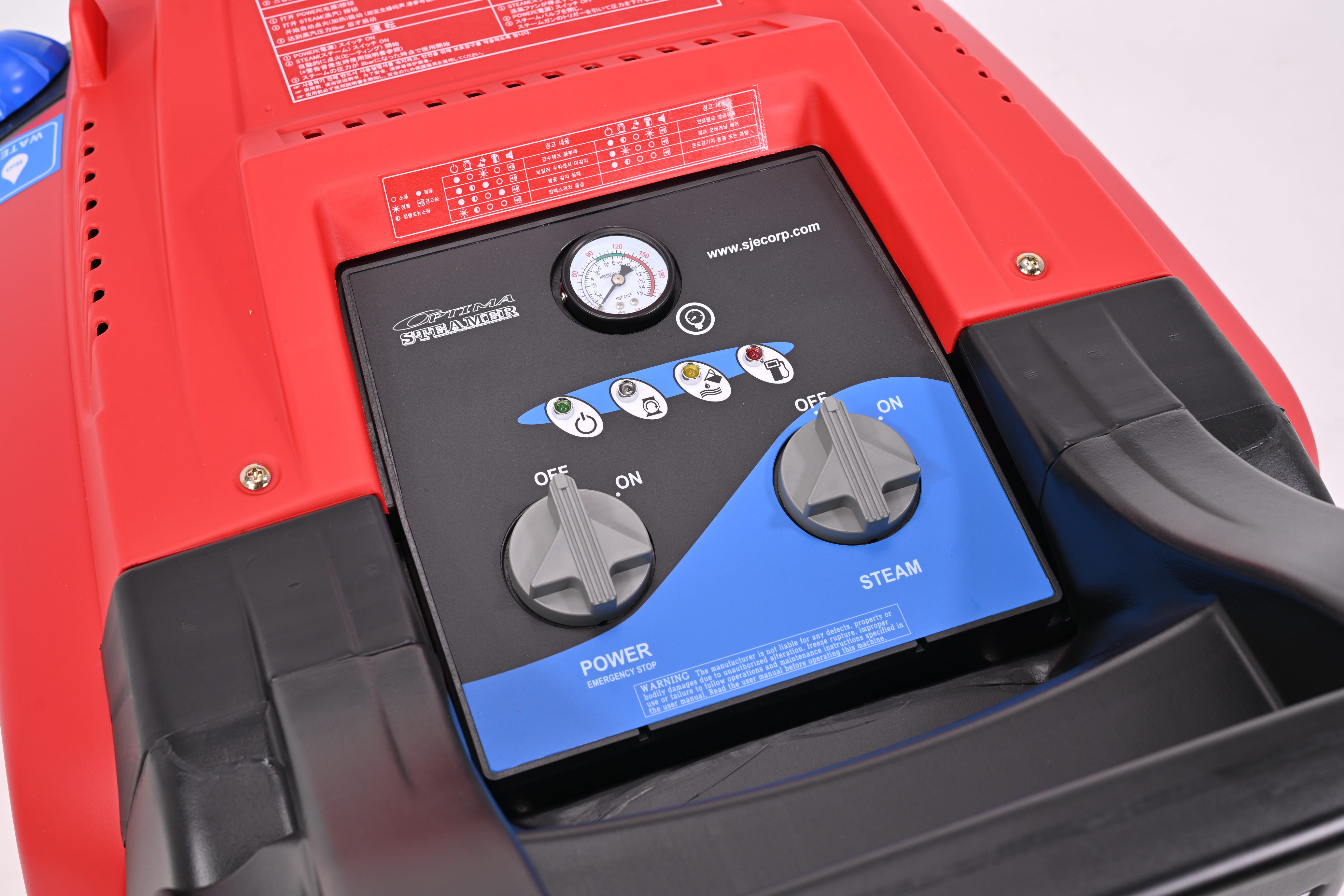

Control Box

Control Box
Throttle Door

Throttle Door
Continuous Feed Hook-Up

Continuous Feed Hook-Up

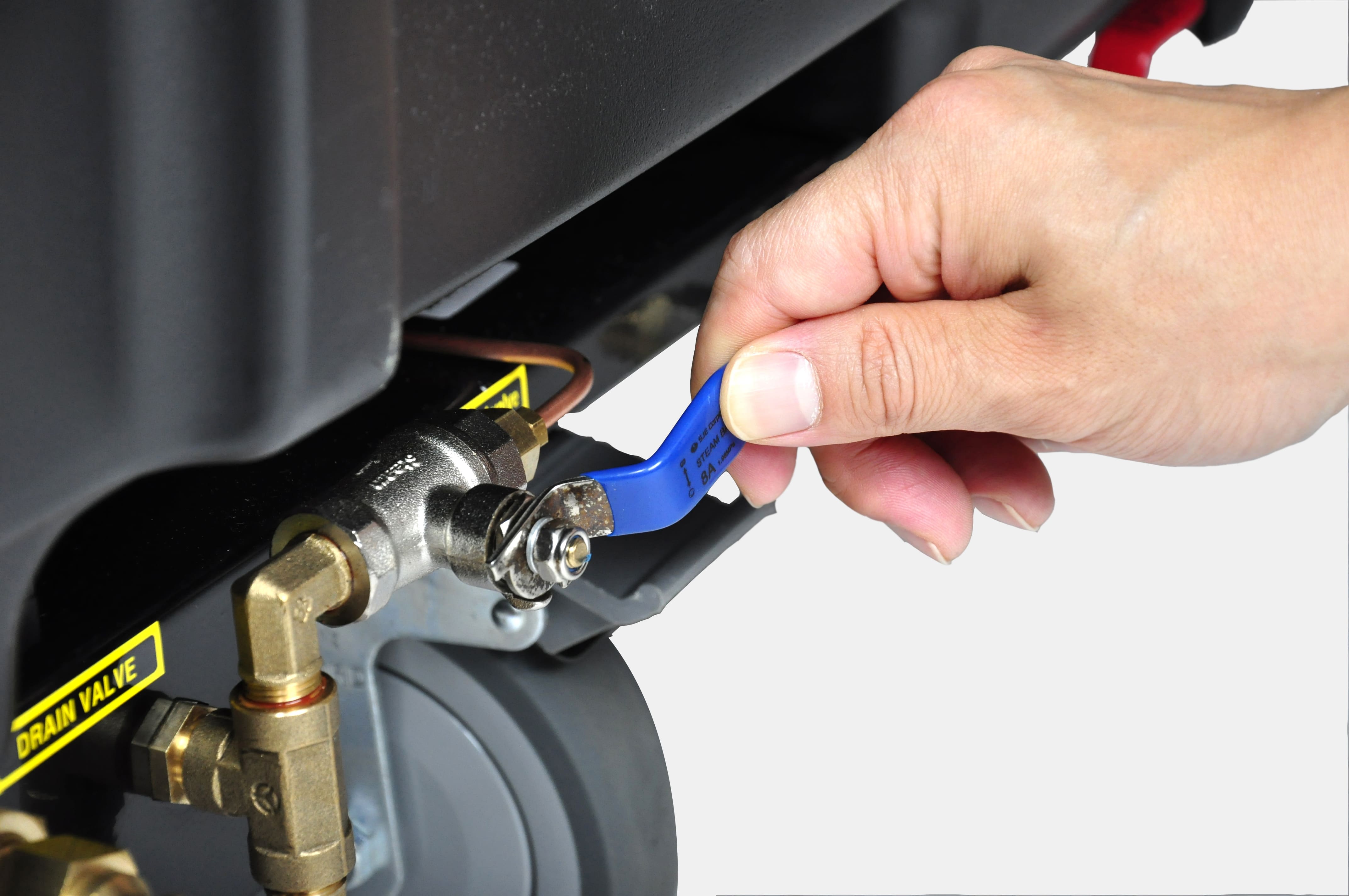

Drain Valve

Drain Valve
Moisture Control Valve

Moisture Control Valve

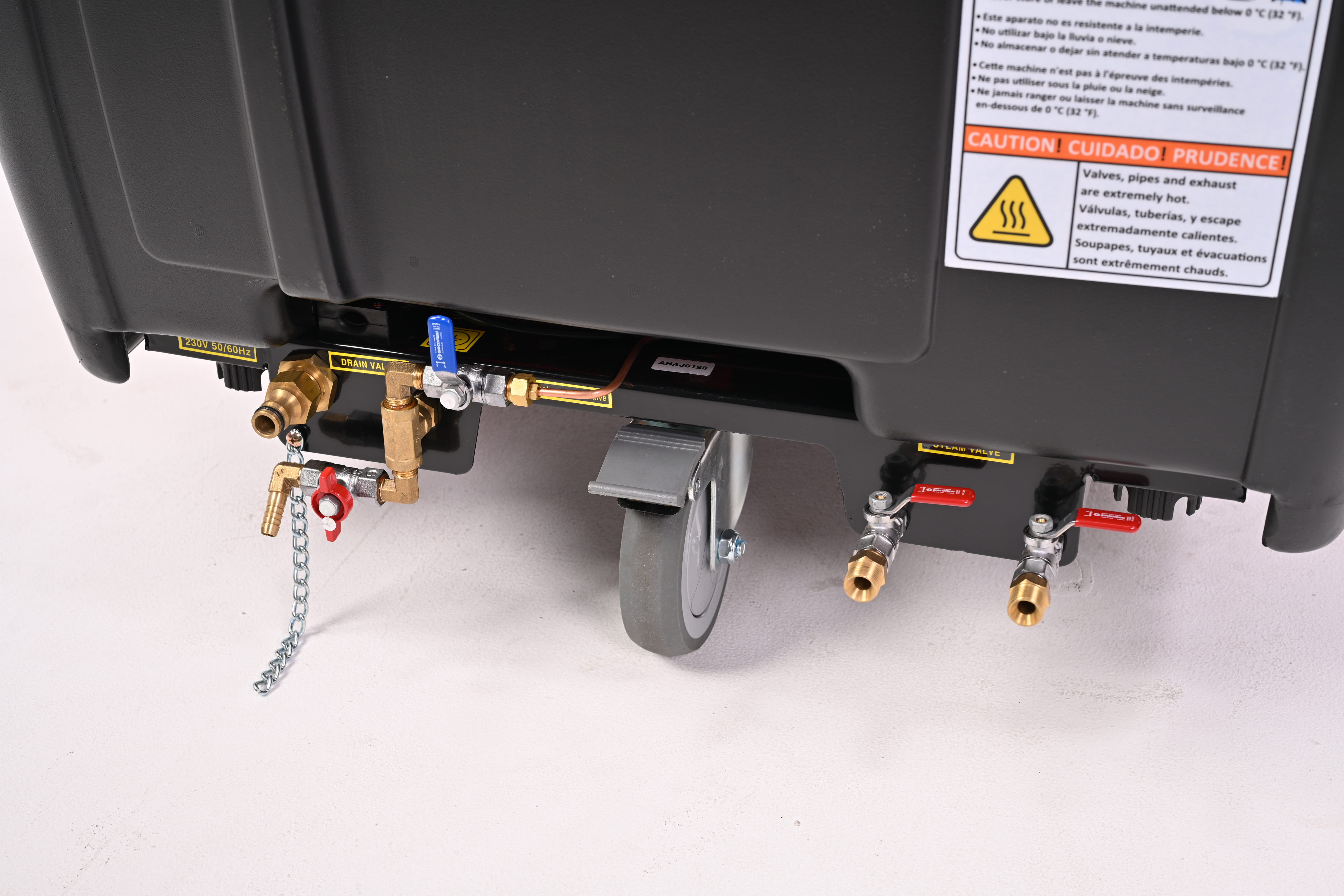

2 Steam Outlet Valves

2 Steam Outlet Valves

Accessories

Check More

Steam Gun K26 with nozzle 3.5

*included
Steam Hose 10M

*included
Steam Extractor Hand Tool
Turbo Steam Nozzle with quick plug
Steam Gun K26 with quick coupler

Specifications

MODELS	DMF	XD	XDm
Operating Voltage	1-Phase 100V ~ 240V	1-Phase 100V ~ 240V	1-Phase 100V ~ 240V
Operating Pressure	8.5 bar	8.5 bar	8.5 bar
Max. Pressure	9.5 bar	9.5 bar	9.5 bar
Max. Temp. at Gun Tip	135°C	135°C	135°C
Boiler Temp.	178°C	178°C	178°C
Steam Flow Rate	300 ~ 1,800 cc/min	300 ~ 1,800 cc/min	250 ~ 500 cc/min
Preheating Time	3 ~ 4 min	3 ~ 4 min	3 min
Power Consumption	0.3 kW	0.3 kW	0.28 kW
Fuel Consumption	0.2 ~ 1.1 L/hr	0.2 ~ 1.1 L/hr	0.2 ~ 0.7 L/hr
Water Tank Capacity	20 L	36 L	11 L
Fuel Tank Capacity	20 L	36 L	11 L
Net Weight	83 kg	89 kg	52 kg
Boiler Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Dimensions (L x W x H)	1,090 x 700 x 900mm	995 x 660 x 887 mm	770 x 480 x 740 mm

※ Specs and spares are subject to change without notice for improvement.
