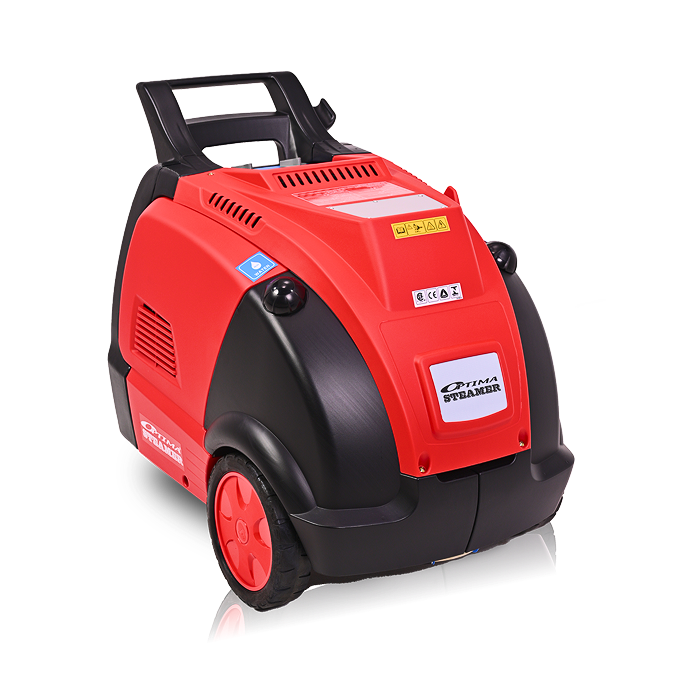

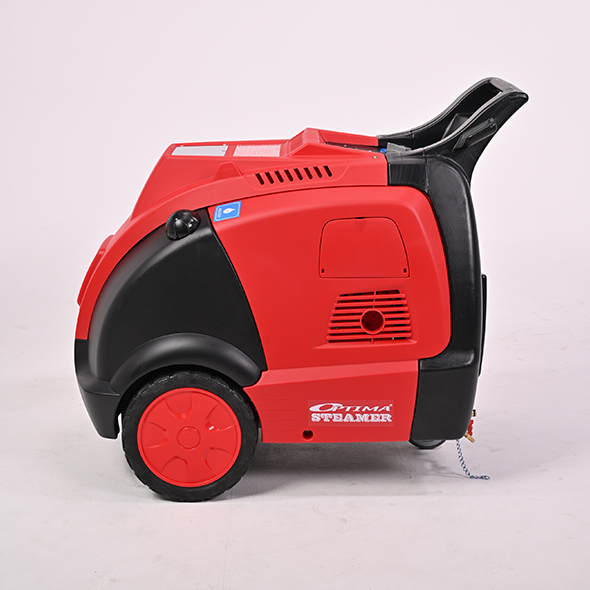

Electric Steamer

OPTIMA EST

OPTIMA EST is an all-electric, industrial-grade steam generator with a durable body. Perfect for indoor operations, facility cleaning, maintenance, and so much more.

Voltage

3-Phase 200V ~ 600V
Max Pressure

9.5 bar
Steam Flow Rate

300 ~ 1,700 cc/min
Power Consumption

12kW/18kW/27kW
Dimensions(Weight)

995*660*887mm(75kg)
Certifications

CE, c-CSA-us, SASO

Overview

1st Generation All-Electric Steamer

OPTIMA EST all-electric industrial steamer offers zero-emission dry steam cleaning with simplified operation and maintenance.
Superior Advantages

OPTIMA EST combines the world-famous power of OPTIMA all-electric steamer with durable design.

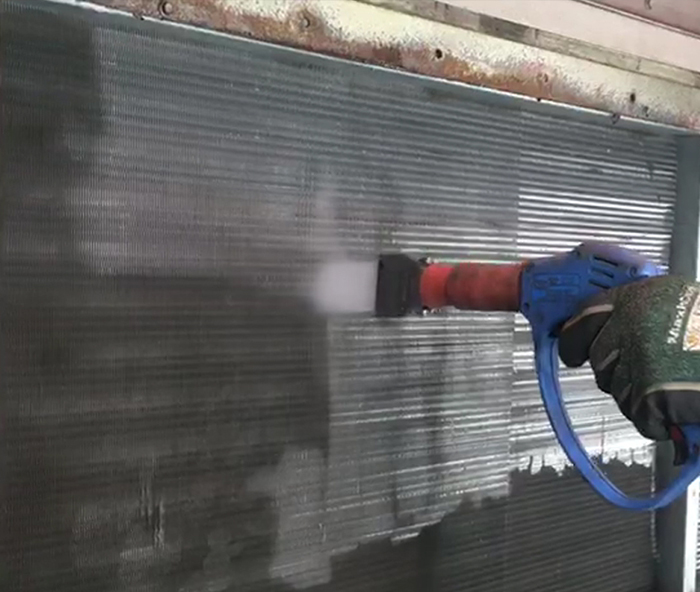

Recommended Applications

OPTIMA EST produces no exhaust and virtually zero waste water and it is the perfect solution for commercial cleaning, auto repair and body shops, etc.

OPTIMA EST The World Leader in Industrial Steam Cleaning

Now Experience OPTIMA EST’s Unrivaled Technology & Steam Power

Features

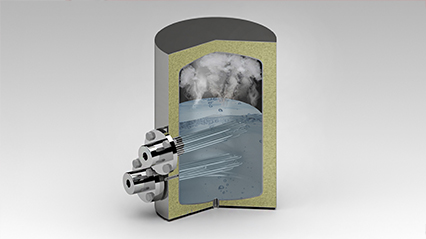

POWERFUL ALL-ELECTRIC PERFORMANCE

See and feel the difference of the EST’s powerful heating system that delivers dry, superheated steam continuously 24/7.
DRY & WET STEAM

Increase the moisture output of the steam spray for tougher jobs. Hot water is delivered from the boiler to make quick work of heavier oils and caked on dirt.

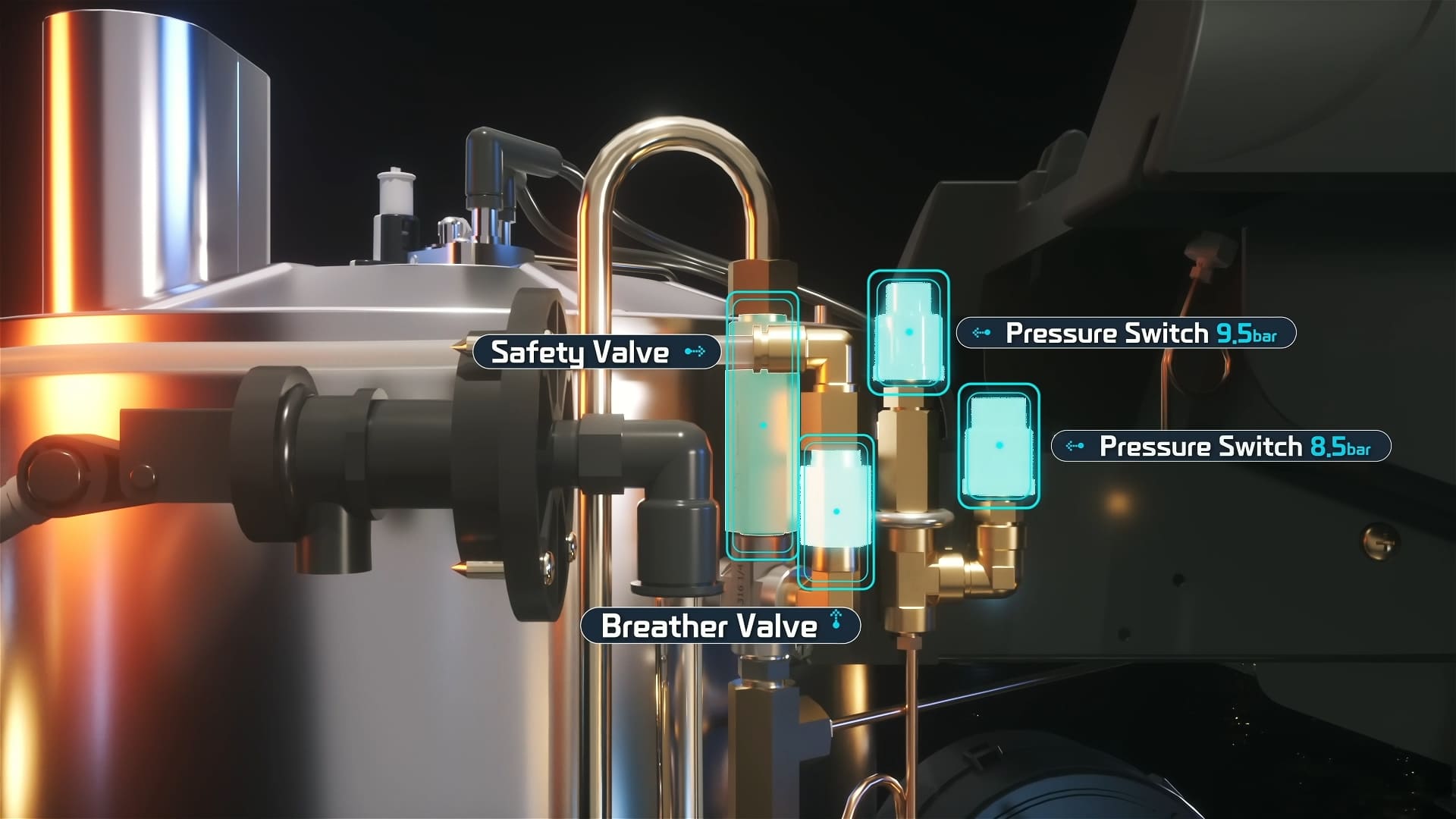

SIMPLIFIED OPERATION RELENTLESS SAFETY

The EST has been intelligently designed so it can be operated by almost anyone. With over 20 safety features, it takes the worry out of operation.
CONVENIENT CONNECTIONS

The EST has 2 steam output connections. Connect a water hose for an unlimited supply of water.
SANITIZE AND DEODORIZE WITH NO CHEMICALS

The OPTIMA’s superheated steam is lab tested to kill mold, bacteria and viruses using only water. Sanitize while you clean and stop odors where they start.
REDUCE YOUR COSTS, SAVE THE ENVIRONMENT

Get rid of harmful chemicals, reduce water consumption and cut wastewater with the OPTIMA and save money while you’re saving the earth.

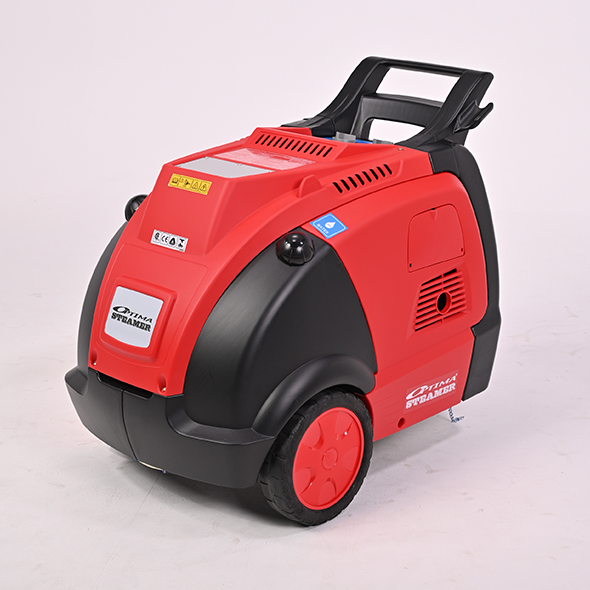

OPTIMA EST Detail View

EST

Water Tank 40L

Water Tank 40L

EST

Throttle Door

Throttle Door

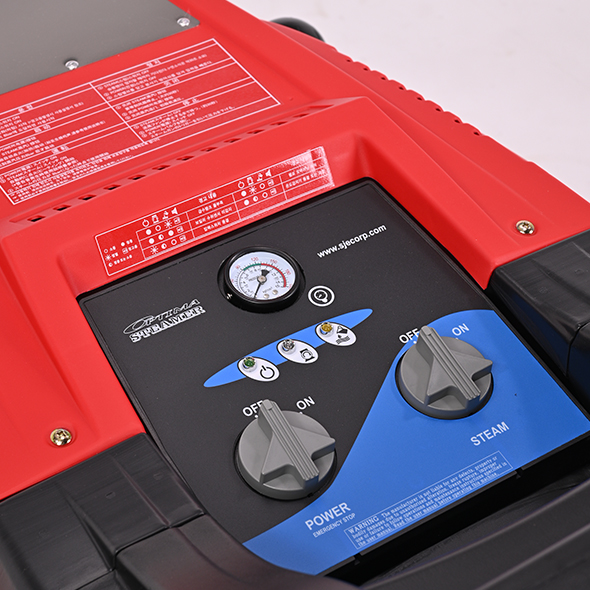

Control Box

Control Box
Continuous Feed Hook-Up

Continuous Feed Hook-Up

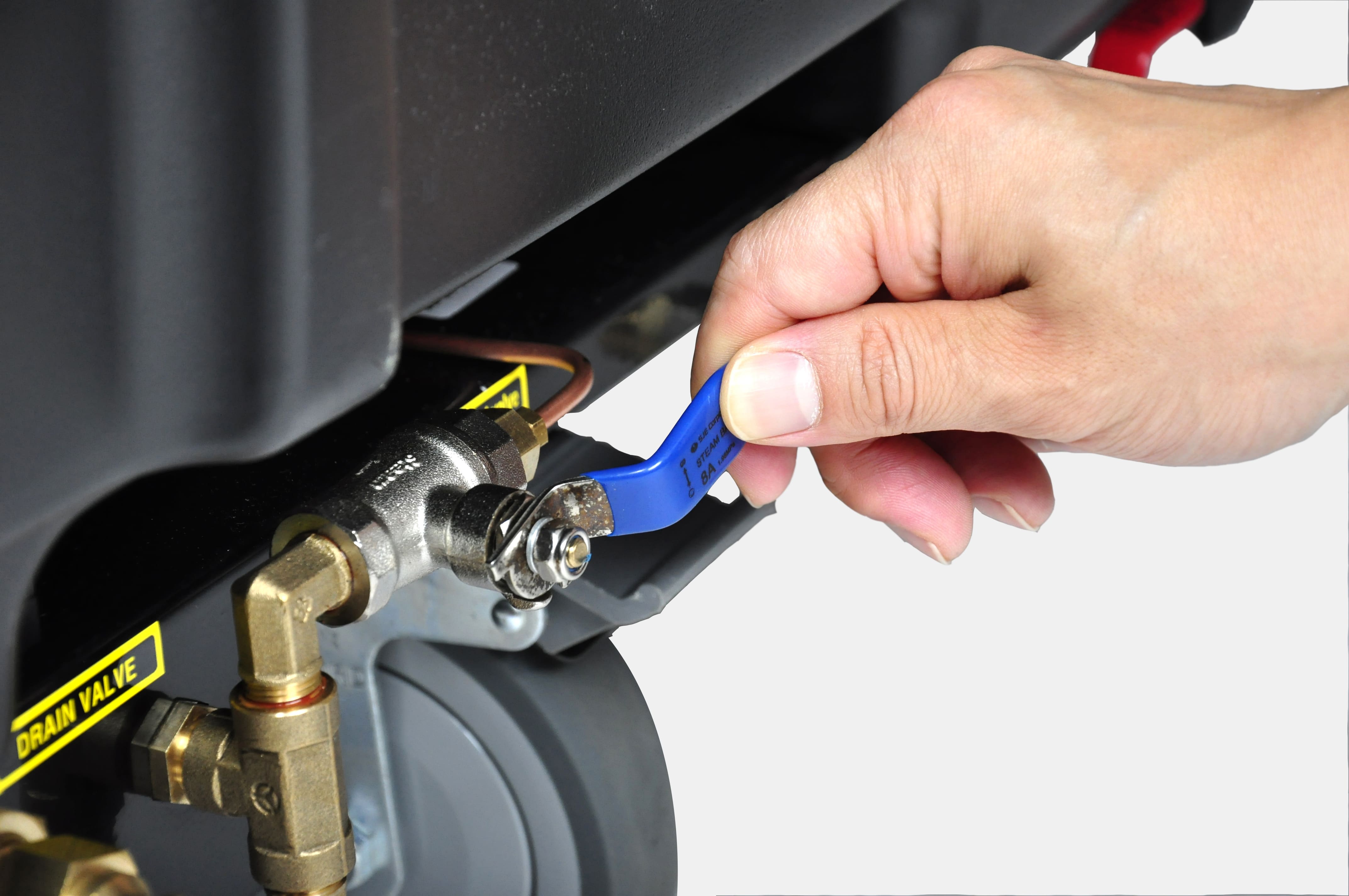

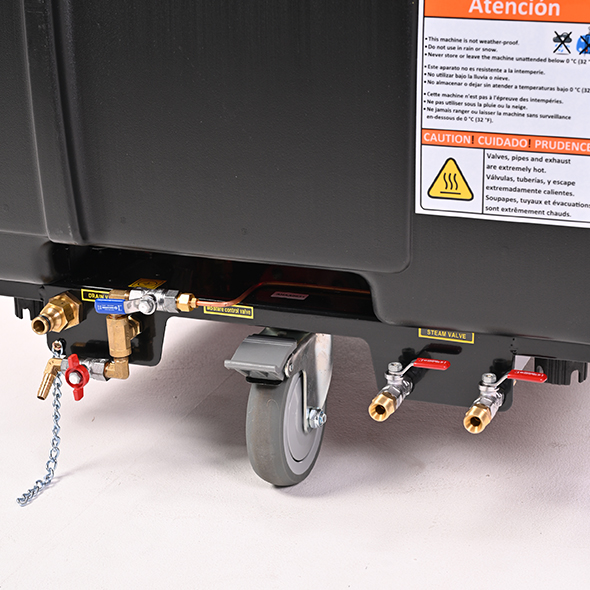

Drain Valve

Drain Valve
Moisture Control Valve

Moisture Control Valve

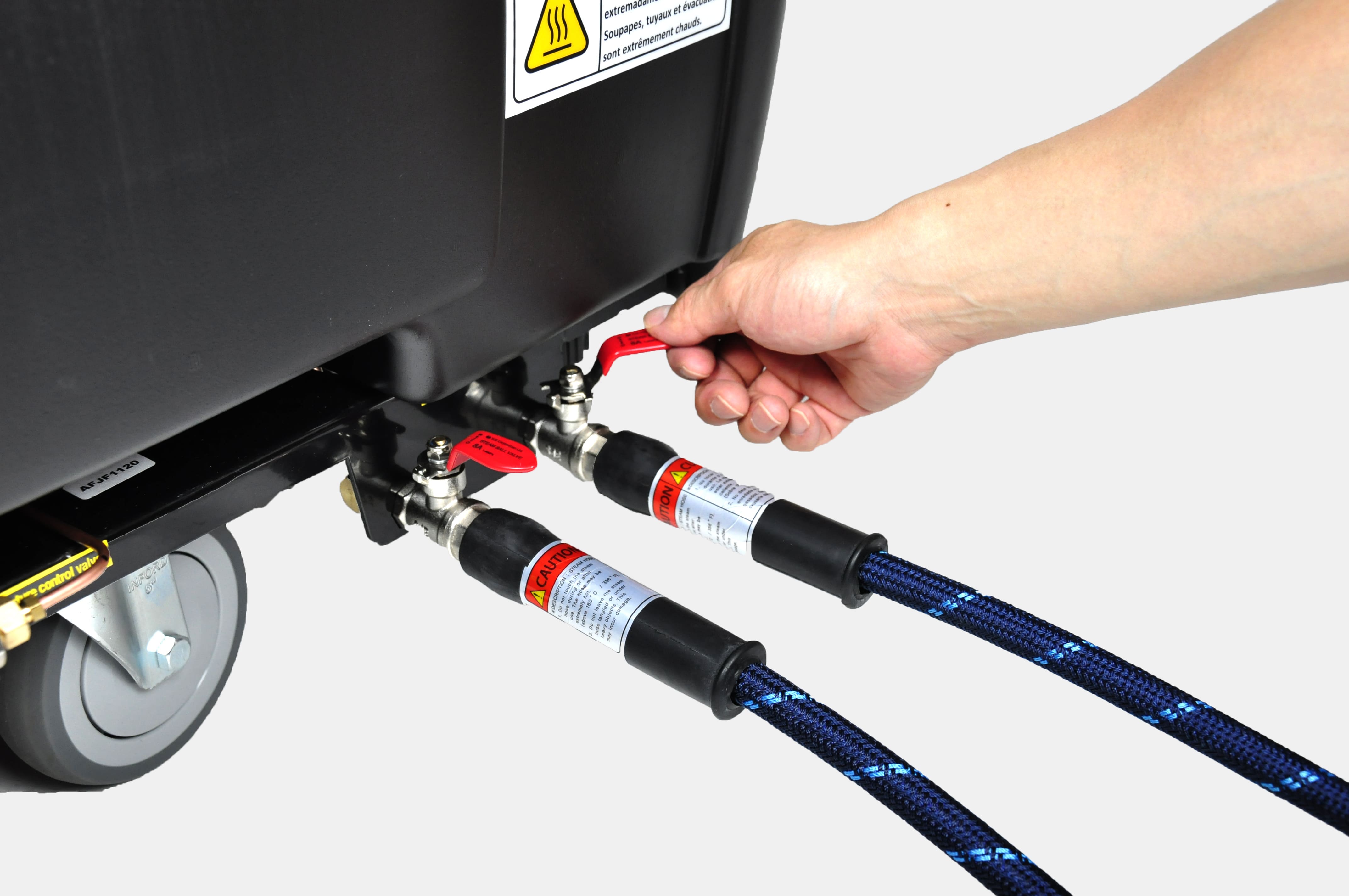

2 Steam Outlet Valves

2 Steam Outlet Valves

Accessories

Check More

Steam Gun K26 with nozzle 3.5

*included
Steam Hose 10M

*included
Steam Extractor Hand Tool
Turbo Steam Nozzle with quick plug
Steam Gun K26 with quick coupler

Specifications

MODELS	EST05K	EST12K	EST18K	EST27K
Operating Voltage	1-Phase 200V ~ 240V	3-Phase 200V ~ 600V	3-Phase 200V ~ 600V	3-Phase 200V ~ 600V
Operating Pressure	8.5 bar	8.5 bar	8.5 bar	8.5 bar
Max. Pressure	9.5 bar	9.5 bar	9.5 bar	9.5 bar
Max. Temp. at Gun Tip	135°C	135°C	135°C	135°C
Boiler Temp.	174°C	174°C	174°C	174°C
Steam Flow Rate	300 ~ 600 cc/min	300 ~ 900 cc/min	300 ~ 1,200 cc/min	300 ~ 1,700 cc/min
Preheating Time	21 ~ 23 min	10 ~ 11 min	6 ~ 7 min	6 ~ 7 min
Power Consumption	5.2 kW	12.2 kW	18.2 kW	27.2 kW
Water Tank Capacity	40 L	40 L	40 L	40 L
Net Weight	74 kg	74 kg	74 kg	74 kg
Boiler Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Dimensions (L x W x H)	1,090 x 700 x 900 mm	1,090 x 700 x 900 mm	1,090 x 700 x 900 mm	1,090 x 700 x 900 mm

※ Specs and spares are subject to change without notice for improvement.
